Eco-Solvent Printing

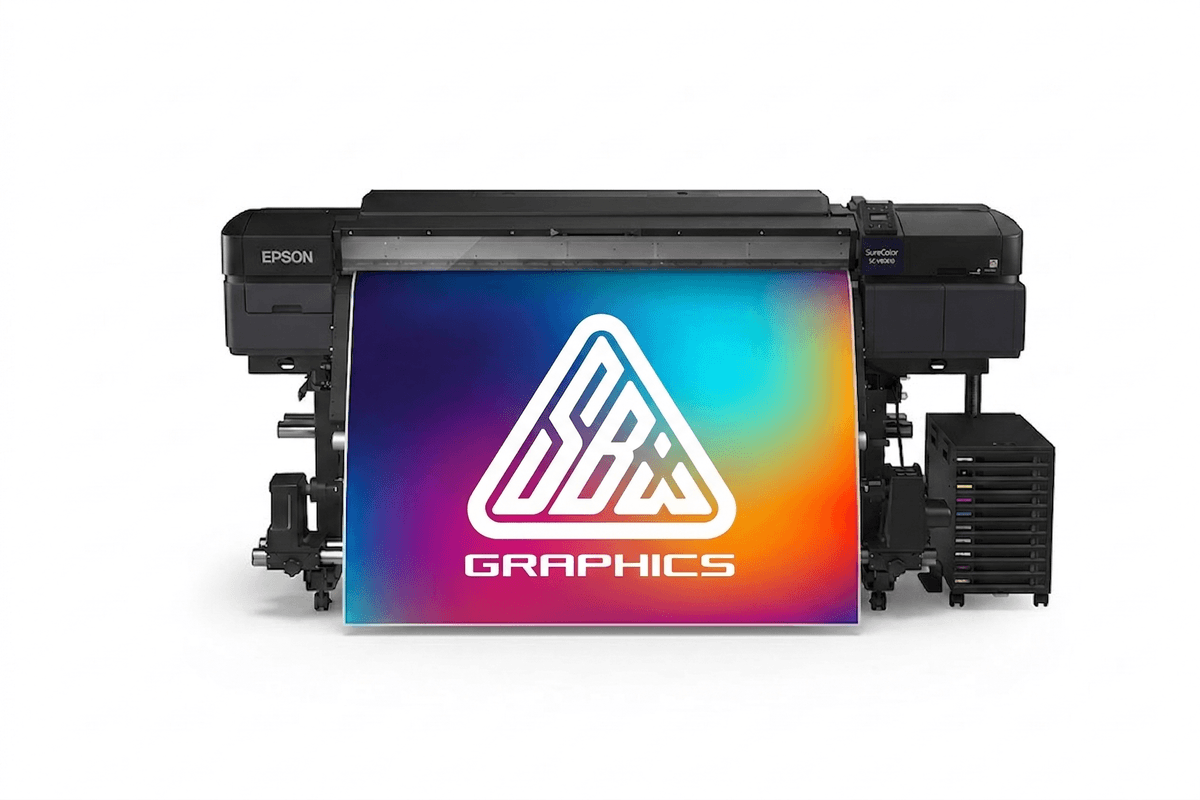

Weather-resistant outdoor signage · EPSON Eco-Solvent 10-color 1440dpi
Print Size Preview
1000×1000
mm
Area: 1.00m²Single sheet
Fast Shipping
Ships in 1-2 days
Quality Guarantee
Genuine inks used
Real-Time Quote System
Min 200mm · Max 2,400mm
Min 200mm · No length limit
Calculation Method
Based on total area · auto +3mm bleed on all sides
Calculated Area1.012 ㎡
Subtotal (excl. VAT)₩26,310
VAT (10%)₩2,630
TOTAL PRICE
₩28,940
UNIT PRICE
₩28,940
A file upload is required to place an order
Shipping Info
Base Shipping₩4,000
CarrierCJ Logistics
Free ShippingOrders over ₩150,000
Materials Guide
PVC Calendered (White)
Highly flexible and durable synthetic resin. Resistant to moisture and stains — suitable for indoor and outdoor use. Adheres well to smooth surfaces like glass and acrylic.
PVC Calendered (Gray Back)
Gray back-coating prevents bleed-through when overlaying existing signage. Same durability as white.
PVC Removable (White)
Removable material that leaves no adhesive residue. Suitable for temporary use or frequently-replaced informational stickers.
PVC Calendered (High-Tack)
Strong adhesion. For rough surfaces or long-term outdoor application.
PVC Clear
Transparent-background PVC. Suitable for windows and storefronts where the background should remain visible.
Vehicle Wrap (LD59HTG)
LX Hausys vehicle wrap film. Excellent for curved surfaces; includes a separate coating step.
Canvas
Fabric output. For interior frames and exhibitions. No coating available.
Coating Guide
Matte Cold Coating
Low reflectivity gives a calm, refined look. Expresses images with elegance. The most commonly chosen default coating.
Gloss Cold Coating
High reflectivity for bright, vivid image expression. Best for photo/image-centric prints.
Back Coating (Front Adhesive)
Adhesive on the front so it can be applied from inside a window. Helps prevent loss or tampering.
Floor Coating (max width 1240mm)
Highly durable coating resistant to impact, friction and stains. For floor graphics.
Cutting Method
Design
Square Cut
Straight cut to the entered dimensions. The most basic finishing.
Design
Die Cut — M100
Free-form cut along the design contour. M100 defines the cut line.
Sticker
C100 Full-CutM100 Kiss-CutKiss + Full Cut — M100+C100
M100 = Kiss-cut (sticker outline), C100 = Full-cut (sheet cut)
5mm+
Multi-Cut Kiss + Full
Sheet-style fancy stickers. Minimum 5mm gap between cut lines required.
Cut-Line File Note: Create cut lines using strokes (Line) on a CUT layer. Keep at least 3mm between cut lines for safety.
Large Format Production
The maximum PVC calendered roll width is 1,200mm.
When orders exceed this width, the print is split.
PVC Calendered Roll Width
1200 mm
Roll width: 1,200mm
Length: Unlimited in roll direction
(Example) Producing 2000mm × 2000mm
Printed in splits and overlaid during installation
2000 × 1020
(mm)
2000 × 1020
(mm)
2000 × 1200
(mm)
2000 × 820
(mm)
Each split is printed with a 20mm overlap area between sections.
Split ratios may vary depending on print size or buyer request.
1
Width ≤ 1,200mm — Single Sheet
Printed as a single sheet without splitting.
◁ Max 1,200mm ▷
Single Sheet≤ 1,200mm × any length
e.g. 900×600mm signs, 1000×800mm banners
2
Width > 1,200mm — Split Print
Produced as splits including a 20mm overlap.
1,200mmSplit ①
20mm overlap
820mmSplit ②
Total 2,000mm example
e.g. 2000×1000mm = Split① 1,200mm + Split② 820mm
[ Large Format Criteria ]
* PVC calendered roll width is 1,200mm.
* When the shorter side of the print exceeds the roll width, the print will be split.
* Split ratios may vary depending on the print size or buyer request.
[ Production Examples ]
| Order Size | Production | Split |
|---|---|---|
| 600 × 900mm | Single Sheet | ✕ |
| 1200 × 1800mm | Single Sheet | ✕ |
| 1400 × 1000mm | 2-piece Split | ○ |
| 2000 × 2000mm | 2-piece Split | ○ |
Splits are produced with approximately 20mm overlap.
Overlap installation must be done by the customer.
Production Workflow
01
Data Preparation
AI/PSD/PDF source files
CMYK color mode
+3mm bleed all sides
02
Solvent Printing
EPSON 10-color 1440dpi
Genuine eco-solvent inks
Max width 1200mm
03
Drying & Coating
After full drying
Cold lamination
Matte / Gloss option
04
Precision Cutting
Automated cutter
Zero-tolerance finishing
M100 / C100 cut lines
Use Cases
Info StickersCaution StickersPoster StickersWall StickersDecor StickersGlass StickersNameplatesLabelsFood LabelsFancy StickersLetter StickersLetter CutoutsFront-Adhesive (Back-Coated)Floor StickersVehicle WrapAdvertising Stickers
Shipping Information
Parcel Delivery
Orders placed and paid by 12:00 PM on weekdays ship same day
Carrier: CJ Logistics · 1-2 days average delivery (excluding weekends/holidays)
Base shipping: ₩4,000 · Nationwide delivery (Jeju/remote areas surcharged)
Standard parcel: box ≤ 1500mm · Freight: > 1500mm
Production Size
Max print width: 1200mm (EPSON eco-solvent)
Split printing when exceeding max width (approx. 20mm overlap, customer-installed)
Please add +3mm bleed on all sides to your working size
